8" Submersible Motors

MSP 8″ MSM series submersible motors are water-cooled, rewindable borehole motors. With NEMA connections they drive most 8″ borehole pumps, and with a stainless steel body and shaft, radial plain bearings and a carbon axial thrust bearing they are built to run continuously in harsh conditions. The MSM 8/40 – MSM 8/125 models cover 30–92 kW (40–125 HP) and can be started direct-on-line (DOL) or star-delta.

ModelsMSM 8/40 – MSM 8/125

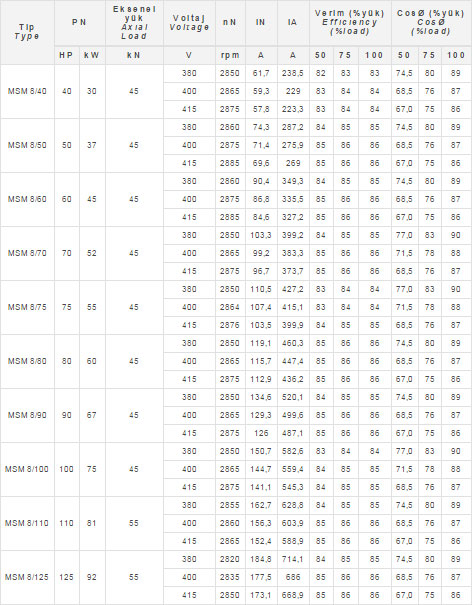

Motor power30–92 kW (40–125 HP)

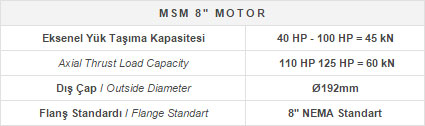

Axial thrust capacity45–60 kN
Max. starts (catalogue)12–15
Motor length1158–1638 mm
Weight129–209 kg
StartingDirect-on-line (DOL) or star-delta
CoolingWater-cooled, rewindable
Protection classIP68
Material optionsAISI 304, AISI 316 or bronze
Frequency50 and 60 Hz
OptionPT100 temperature sensor
